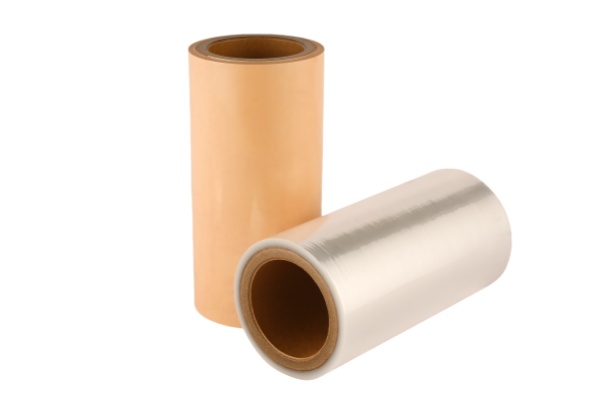

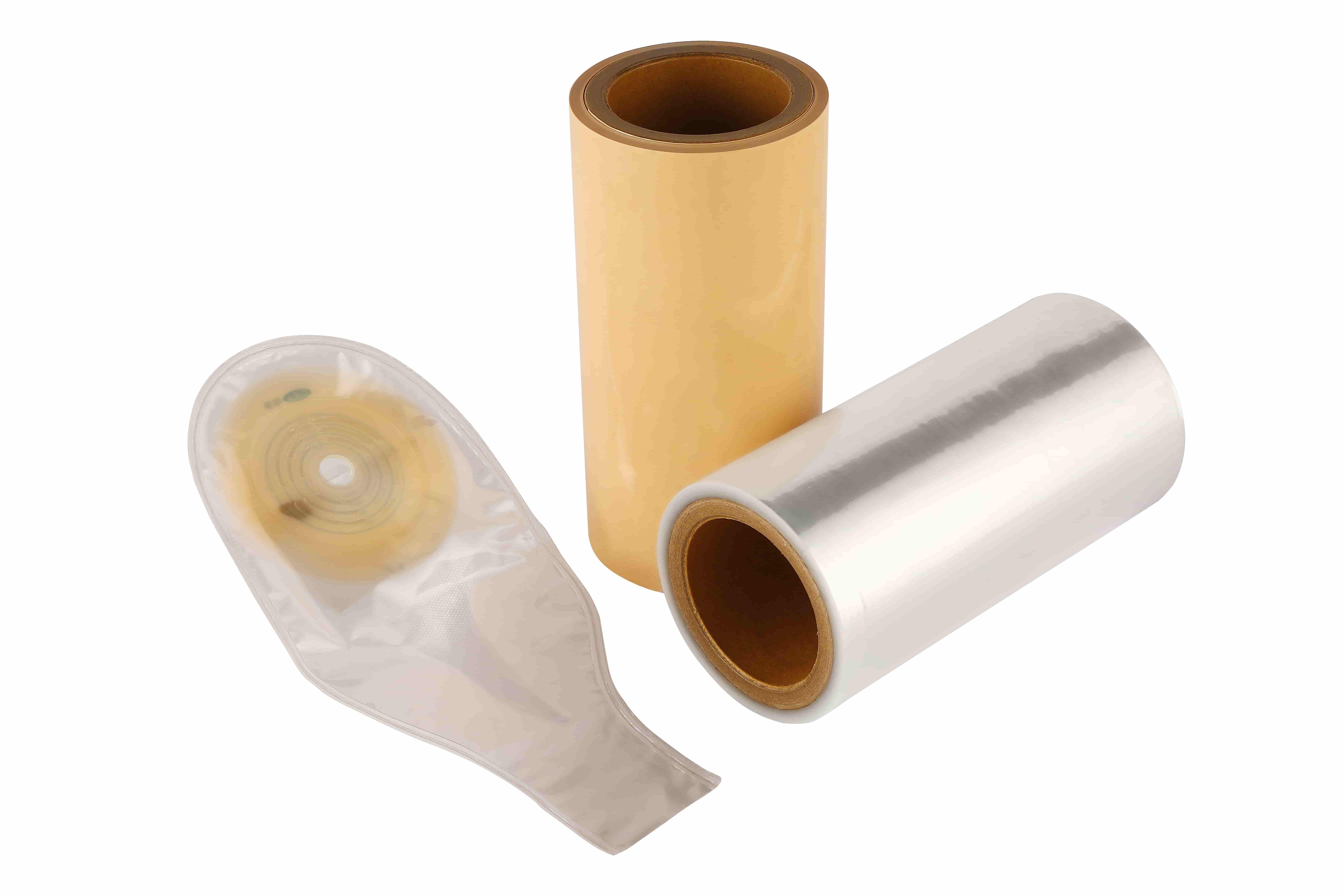

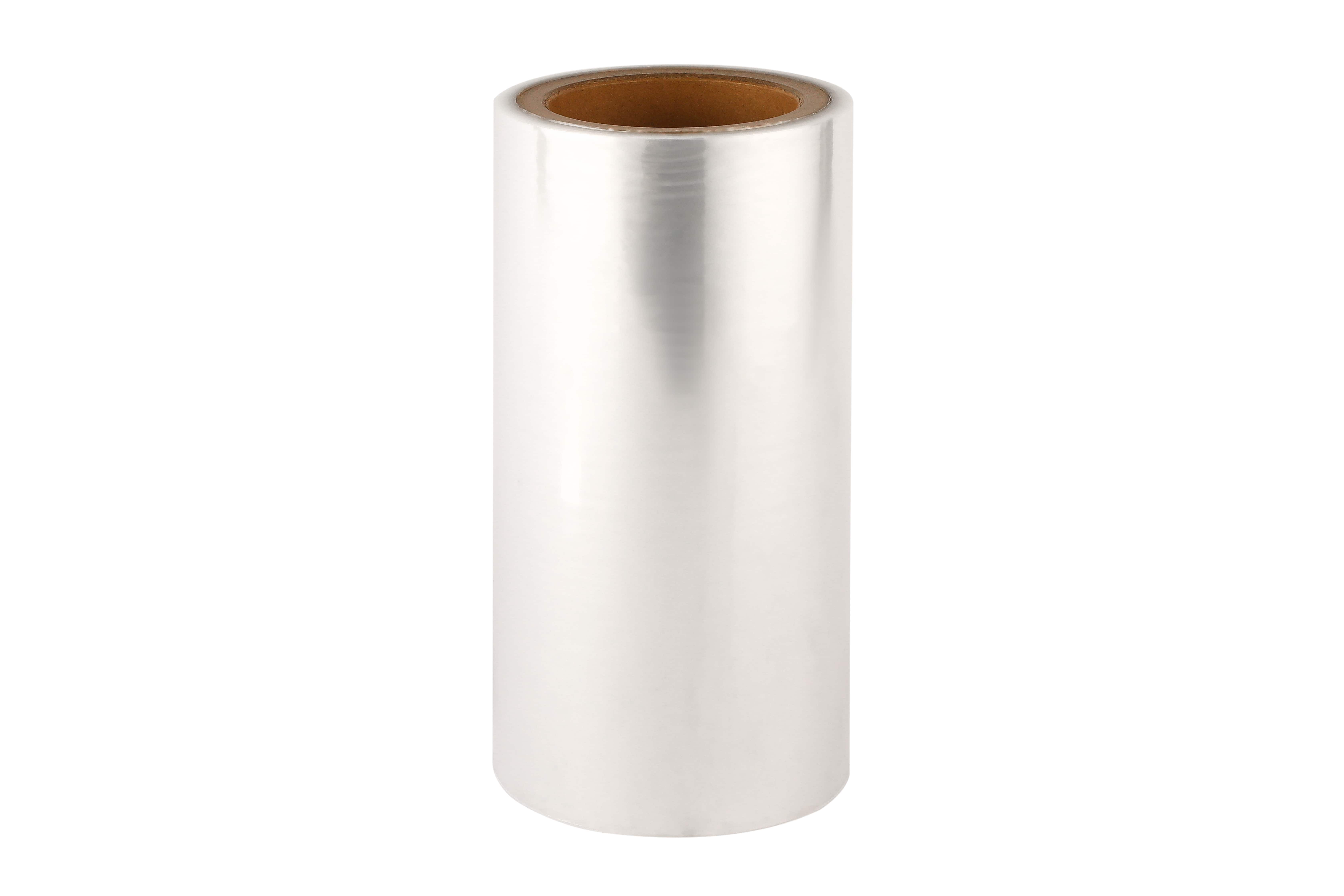

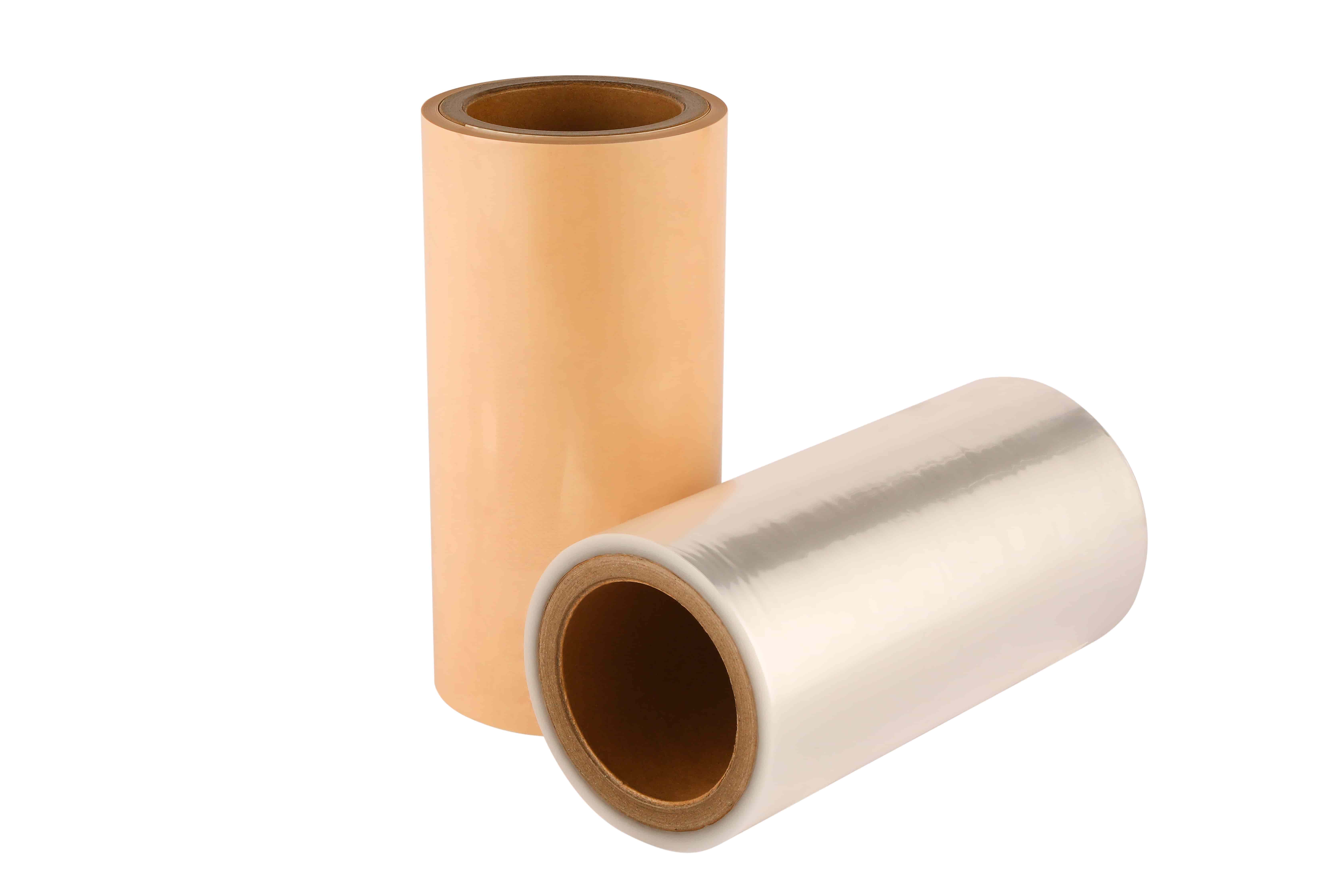

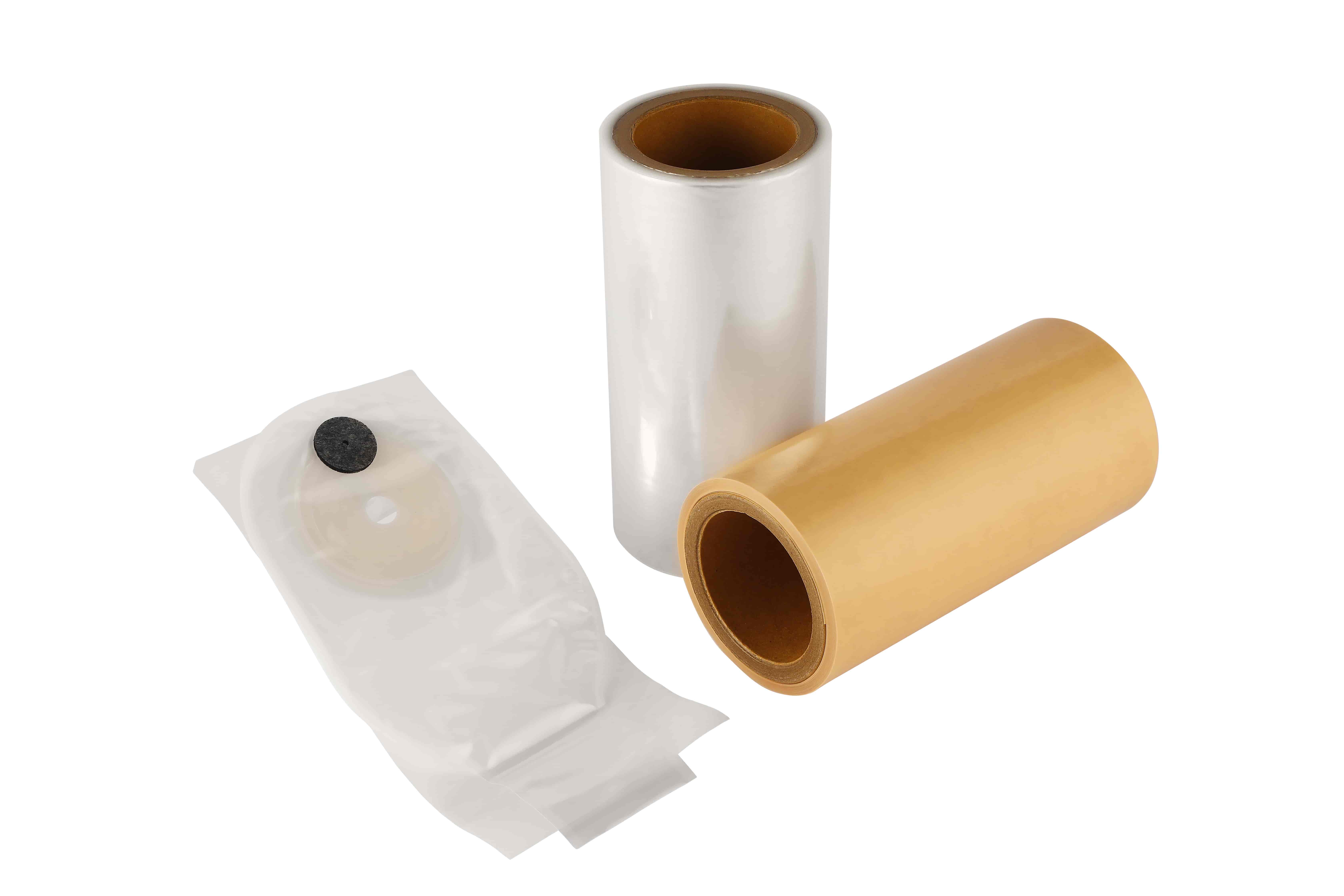

Ostomy Bag Film is a medical flexible film for ostomy bag bodies, wafers and other components. Its core functions include leak-proofing, odor barrier, skin protection, and adaptation to production/usage scenarios. Mostly a multi-layer co-extruded structure, it balances performance and comfort.
Цвет :
Clear,Beige,Brown,GreyДиапазон толщины (ум) :
76MOQ (кг) :
500PE/EVOH/PE Ostomy Bag Film is a high-performance co-extruded film specially tailored for ostomy bag production. By combining polyethylene (PE) and ethylene-vinyl alcohol copolymer (EVOH) through advanced co-extrusion technology, it boasts excellent physical strength and barrier properties, providing reliable protection for ostomy bags and ensuring patient safety and comfort during use.
The middle EVOH layer effectively blocks the diffusion of odorous gases(e.g., hydrogen sulfide) from excreta, addressing the core pain point of "odor embarrassment''for ostomy patients.Prevents oxygen from penetrating into the bag to inhibit bacterial growth, extending the storage time of excreta. It also resists oil penetration, suitable for patients with different dietary habits.
The inner PE layer features a soft touch ,fitting closely to the skin without causing friction damage ,ideal for long-term wear.High tensile strength and tear resistance:It can withstand tension during bag manufacturing and daily use, not easily damaged.Excellent heat-sealing performance:Ensures tight sealing of ostomy bag seams, avoiding leakage risks.
|
Parameter |
Specification |
|
Total Thickness |
76μm (Tolerance: ±2μm) |
|
Outer PE Layer Thickness |
30μm |
|
Middle EVOH Layer Thickness |
6μm |
|
Inner PE Layer Thickness |
40μm |
|
Longitudinal Tensile Strength |
≥ 22 MPa |
|
Transverse Tensile Strength |
≥ 18 MPa |
|
Longitudinal Elongation at Break |
≥ 500% |
|
Transverse Elongation at Break |
≥ 450% |
|
Oxygen Transmission Rate (OTR) |
≤ 3 cm³/(m²·24h·0.1MPa) (23°C, 50% RH) |
|
Water Vapor Transmission Rate (WVTR) |
≤ 8 g/(m²·24h) (38°C, 90% RH) |
|
Heat-Sealing Temperature |
125-145°C (Heat-sealing pressure: 0.3-0.5MPa; Heat-sealing time: 1-2s) |
|
Tear Strength |
≥ 50 kN/m (Longitudinal); ≥ 45 kN/m (Transverse) |
|
Surface Resistance (Inner Layer Antistatic) |
≤ 10¹¹ Ω (Ensures antistatic effect, reduces excreta adhesion) |
